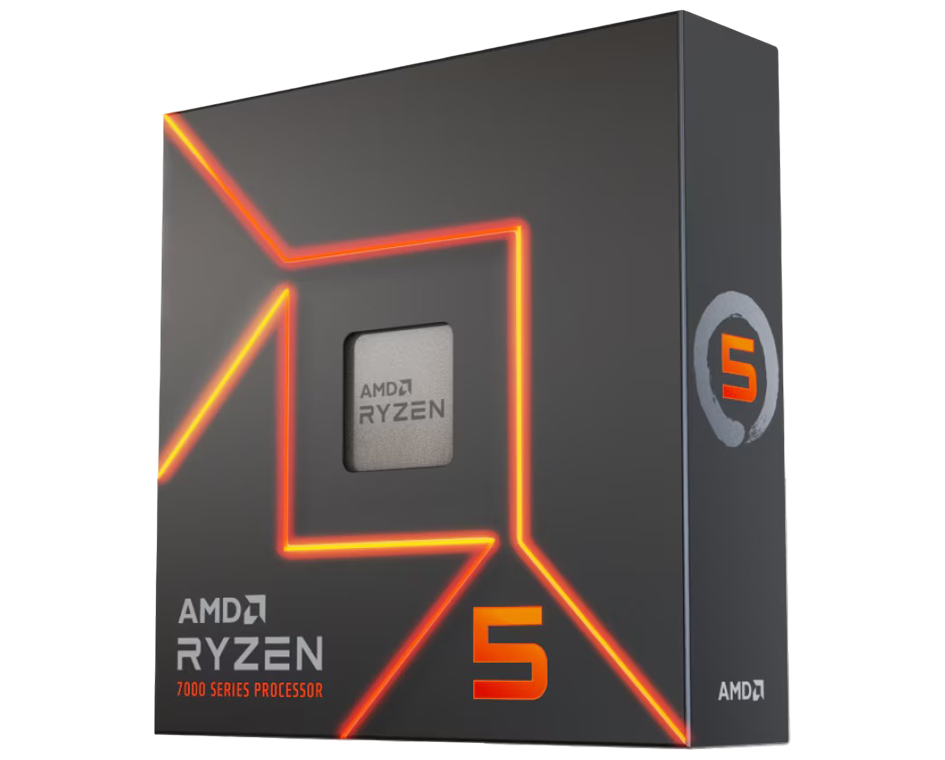

AMD Ryzen™ 5 7600X Processor (6 Cores, 12 Threads) Up To 4.7 GHz

Product Name: AMD Ryzen™ 5 7600X

Family & Series: Ryzen 7000 Series – Enthusiast Desktop

Codename: Raphael (AM5 Platform)

Processor Architecture: Zen 4 – optimized for performance and efficiency

CPU Core Count: 6 physical cores

Thread Count: 12 threads with Simultaneous Multithreading (SMT)

Base Clock Speed: 4.7 GHz

Max Boost Clock: Up to 5.3 GHz – for demanding tasks and gaming

Cache Configuration:

• L1 Cache: 384KB

• L2 Cache: 6MB

• L3 Cache: 32MB

Fabrication Process:

• CPU Cores: TSMC 5nm FinFET

• I/O Die: TSMC 6nm FinFET

• CCD Size: 71mm²

• IOD Size: 122mm²

Thermal Design Power (TDP): 105W

Socket Compatibility: AM5

Supported Chipsets: A620, B650, B650E, X670, X670E, X870, X870E, B840, B850

Unlocked for Overclocking: Yes

Overclocking Features:

• AMD EXPO™ Memory Overclocking

• Precision Boost Overdrive

• Curve Optimizer Voltage Offsets

• AMD Ryzen™ Master Utility Support

Instruction Set & Extensions:

• x86-64 architecture

• Supports: AES, AVX, AVX2, AVX512, FMA3, MMX+, SSE4.1/4.2/A, SHA, and more

Thermal Solution (PIB): Not included

Recommended Cooler: Premium air cooler (not in box)

Maximum Operating Temperature (Tjmax): 95°C

Launch Date: September 27, 2022

Operating System Compatibility:

• Windows 11 / 10 – 64-bit

• RHEL x86 64-bit

• Ubuntu x86 64-bit

Best For: Enthusiasts, gamers, and performance users building next-gen desktops
